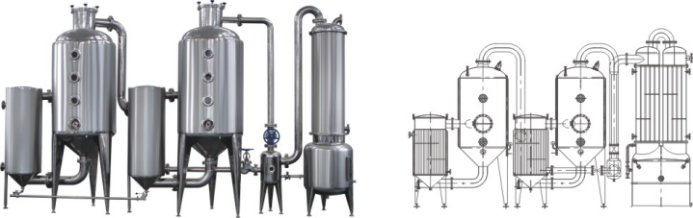

SNH(SN)系列雙效濃縮器(自控排水)

SNH(SN)系列雙效濃縮器(自控排水)

SNH(SN) SERIES DOUBLE-EFFECT CONCENTRATOR(AUTO DRAINAGE)

本濃縮器適應于中藥、西藥、葡萄糖、淀粉、味精、食乳品、化工等液料的濃縮，尤其適用于熱敏性物料的低溫真空濃縮。我公司經過精心計算，周密設計改進后，比原來的特點效益更多。貴廠可根據濃縮量大小，來選用技術參數中系列濃縮器。

The concentrator is applicable for concentration of liquid materials for traditional Chinese medicine, Western medicines, glucose, starch, monosodium glutamate, dairy foods and chemical industry, especially ideal for low temperature vacuum concentration of heat sensitive substances. After carefully calculating and designing, compared with before, the equipment has more characteristics and benefits. You can choose the concentrators with technical parameters indicated according to the quantity of materials for concentration.

特點與效益

1. 節能效益，按SJN-1000型計算，一年節約蒸氣約3500噸，節約冷卻水9萬噸左右，節約電8萬度左右，折合人民幣10-15萬元。（與單效對比）。

2. 本濃縮器采用外加熱自然型循環式與真空負壓蒸發方式，具有蒸發速度快，濃縮比重大，可達1.2-1.35（一般中藥浸膏），不需敞口鍋收膏。

3. 本濃縮器采用二效同時蒸發，二次蒸汽得到使用，貴廠既節省了鍋爐的投資，節約能源消耗，耗能量與單效濃縮器相比降低50%，不到一年可用節能費中收回本濃縮器的全部投資。

4. 多功能操作特點：(1)可回收酒精濃度80%左右；(2)單效、二效可以反復并鍋收膏；(3)可以間歇、連續進料。

5. 本濃縮器有特殊構造，濃縮出來的物料具有味道濃，膏質均勻。使物料在密封中無泡沫狀態下進行濃縮，不易跑料，減少污染，當天物料當天濃縮完畢，不易結焦，清洗方便，打開加熱器上下蓋即可清洗，并節約勞力，一人可以操作。

6. 本濃縮器與物料接觸部位均采用不銹鋼 AISI 304制造，加熱器、蒸發器外均設有保溫層，保溫采用聚胺脂發泡，外表面磨砂亞光處理，符合GMP醫藥標準。

FEATURE & PROFIT

1. Energy-saving profit: In case of SJN-1000, the saves respectively in the terms of vapor、water and electric per year are about 3500 tons、90000 tons and 80000 watt, equal to RMB 100,000-150,000 Yuan.

2. The device uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.2-1.35 (in case of normal China traditional immerse cream) without need of open-mouth pan for collection of cream.

3. The concentrator uses dual-effect to synchronously vapor, which to utmost extent utilize the second vapor. The client can lower investment in boiler and the energy consumption can be 50% less than that of the single-effect concentrator. It is about less than one year that the client can withdraw the investment in the concentrator.

4. Feature of multiple function handle: (1)The reclaimable alcohol concentration is about 80%. (2)The single-effect and dual-effect can time after time collects cream together. (3)The intermittent and continuous material feeding is available.

5. The special structure of concentrator can bring the concentrated material thick taste and even cream quality. The concentration under the seal and non-bubble condition can prevent material loss and pollution. The present material can be concentrated presently, which features  immune to block and convenient cleaning which can be make just by opening the up and down covers and can be make by one person.

6. The part inside the concentrator in contact with the material is made with stainless steel AISI304. The thermal layer made with polyurethane is available at the heater and evaporator. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
