NX濃稀配罐

NX濃稀配罐

NX THICK THIN MIXING TANK

用途

主要用于大輸液、小針劑及其它溶解、滅菌與調配作用。

USAGE

It is mainly used for the large transfusion, small injection as well as solution, sterilization and preparation etc.

性能

1. 本系列設備具有加熱、冷卻和保溫、攪拌調配功能，容器按《鋼制壓力容器技術條件》進行設計、加工。

2. 規格有0.05m3 -5.0m 3不同容積供選擇，還可以根據用戶實際工藝需要進行設計、加工。

3. 采用夾層結構，具有加熱面積大、焊接少等優點。

4.  軸封采用衛生級硬質合金與碳化硅204平衡型機械密封，耐磨耐壓，減速機轉速為60-82轉/分。也可采用變頻器來調速。

5. 接口采用國際通用標準ISO標準快裝卡盤式，材料為進口316L或304，內表面鏡面拋光Ra≤0.28μm，外表面亞光或鏡面拋光處理。

6.液位計有玻璃管液位計、靜壓傳感器式液位計、超聲波液位計可供選擇。

7. 結構形式分為上下橢圓封頭或下反凸底上橢圓封頭結構，保證藥液不殘留。

8. 夾套結構形式分為標準夾套，外盤管夾套，蜂窩夾套三種供選擇。

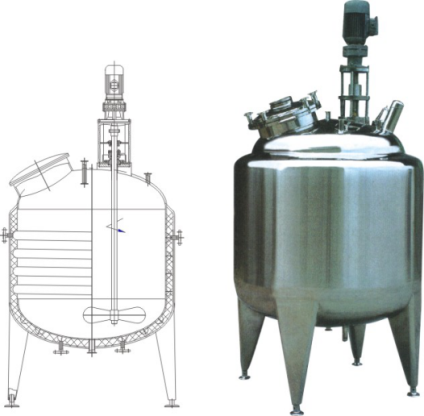

此種結構為上下橢圓封頭與標準夾層夾套組合，具有夾套空間大，加熱面積大，減少焊縫，內膽平整保證物料不掛壁。外形美，結構簡單耐用等優點。其缺點為高度較高。另將減速機如改為蝸輪蝸桿臥式減速機可降低高度250-330mm左右。

PERFORMANCE

1. The series of equipment have the functions of heating, cooling, heat preservation and mixing preparation. The vessel carries out design and processing according to "Technical condition for steel made pressure vessel".

2. The specifications for selection are 0.05m3-5.0m3 different volumes. It can also carry out the design and processing according to the actual technology requirements of customers.

3. Adopt interlayer structure, with the advantages such as large heating area and small welding etc.

4. The shaft seal adopts sanitary level hard alloy and silicon carbide 204 balancing mechanical seal, which is anti-abrasion and anti-press. The rotation speed is 60-82 r/m, and the speed can also be regulated by frequency converter.

5. The interface adopts internationally general-use standard ISO standard rapid installationchuck type, and the material is imported 316L or 304. The mirror polishing of internal surface Ra≤0.28μm, and the external surface adopts semi-luster polishing or mirror polishing treatment.

6. The liquid meters for selection are glass tube liquid meter, static pressure sensor type liquid meter and supersonic wave liquid meter.

7. The structure forms are divided into upward and downward round sealing head or downward reverse convex bottom upward round sealing head structure, which can guarantee no residual of liquid medicine.

8.  The jacket structure forms for selection are divided into standard jacket, external coiled tube jacket, and honeycombed jacket.

The structure is the combination of upward and downward round sealing head and standard layer jacket. It has large jacket space and large heating area, which can reduce the welding seam. The internal bladder is neat, which can guarantee that the material will not be hung on the wall. It has advantages such as beautiful appearance, simple structure and durability. The disadvantage is that it is too high. Additionally, if changing the reducer as horizontal worm gear reducer, the height can be reduced for about 250-330mm.
