生物發酵罐

生物發酵罐

BIOFERMENTATION TANK

概述

生物發酵罐是一種對物料進行機械攪拌與發酵的設備。該設備采用內循環方式，用攪拌槳分散和打碎汽泡，它溶氧速率高，混合效果好。罐體采用SUS304不銹鋼，罐內配有自動噴淋清洗頭，確保生產過程符合藥品GMP標準。

SUMMARY

Biofermentation tank is used for mechanical mixing and ferm-entation of matters. this equipment adopts internal circulation to disperse and smash air bubbles by mixing oar, fast dissolving oxygen, good in mixing effect. The tank body adopts SUS304 stainless steel. Inside the tank is equipped with automatic sprinkle-nozzle, to ensure production process conforms to GMP standard.

結構

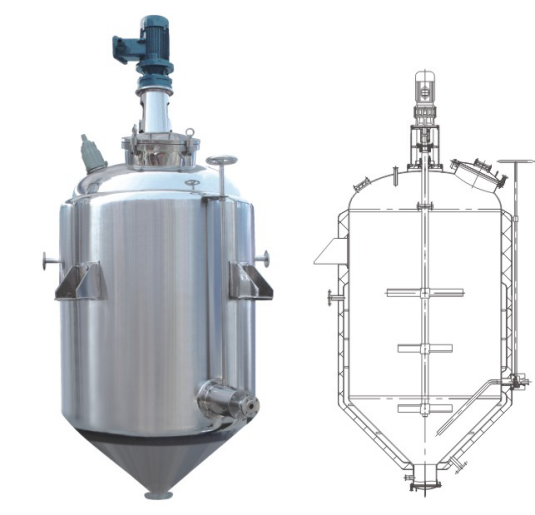

生物發酵罐主要有罐體、攪拌器、擋板、空氣分布器、冷卻管（或夾套）、消泡器、人孔、一體視燈視鏡等主要部件組成。

STRUCTURE

Biofermentation tank mainly consists of tank body, mixer, baffle plate, air distributor, cooling tube (or jacket), de foaming machine, manhole, integrated visual mirror and lamp etc.

配置

物料進出口、冷卻液進出口、液位顯示接口、溫度傳感器接口、PH計接口、壓力傳感器接口、空氣呼吸器接口、CIP接口、消泡電極接口、流量計接口、儀表控制系統。

CONFIGURATION

Product inlet and outlet, cooled liquid inlet and outlet, liquid level display interface, temperature sensor interface, PH gauge interface, pressure sensor interface, air breather interface, CIP interface, defoaming electrode interface, flow meter interface, instrument control system.

生物發酵細胞培養成套工程設備

(1)攪拌形式：標準機械攪拌系統

(2)特點：

公稱容積：100L~50000L

高徑比：H:D=2.0~3.0

裝料系數：0.7

滅菌形式：原位滅菌

系統配置：一般采用三級發酵、種子罐與發酵罐為1:10

系統參數控制：根據用戶需要可三級發酵控制

系統配套：種子罐、發酵罐、控制系統、空氣過濾系統、管閥平臺、公用工程等。

COROLLARY EQUIPMENT AND PROJECTS FOR CULTIVATION OF BIO-FERMENTING CELL

(1)  Mixing type: standard mechanical mixing system

(2) Features:

Nominal capacity: 100L~50000L

Height diameter ratio: H:D=2.0~3.0

Charge coefficient: 0.7

Sterilization type: in-situ sterilization

System configuration: generally adopt three-level fermentation, the ratio of seed tank and fermentation tank is 1:10

System data control: can adopt three-level fermentation controls on users' request.

Corollary equipment: seed tank, fermentation tank, control system, air filter system, tube and valve platform, public projects etc.
