Operational principle

Operational principle

Through set programme (adjustable programme), CIP system makes auomatically preparation clean liquid, via pneumatic control valve and transfer pump and loop liquid pump finishing transfer of clean liquid and whole clean process of circulation circle clean and drain and recovery. Through conduct inspection instrument and PLC constituting control system reaches auto online clean.

系統組成

智能型CIP系統為一中央集成系統，包含注射水罐、CIP罐、板式換熱器、管道過濾器、送液泵、回液泵、溫度控制儀、液位控制儀、電導率檢測儀、PLC觸摸屏、控制柜及系統管閥件等組成。

System includes

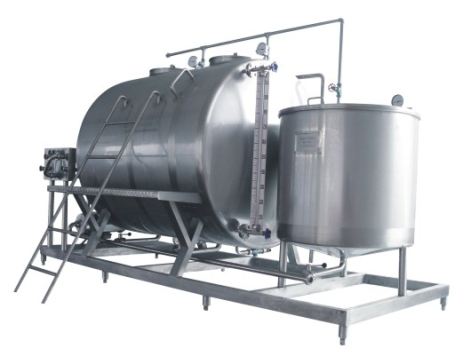

Intelligent CIP system is as central integration system including WFI tank, CIP tank, plate heat exchanger, piping filter, transfer pump, loop liquid pump, temperature controller, level controller, conduct inspection instrument, PLC touch screen, control cabinet and piping and valves etc.

設備說明

CIP系統的全稱為 Cleaning in place System，中文名稱譯為在線就地清洗系統，是指生產設備(罐體、管道、泵等)及整個生產線在無需人工拆開或打開的前提下，  在閉合的回路中進行循環清洗、消毒 。適用用于乳品、飲料 、酒類、農副產品加工等行業的設備和管道的清洗。
