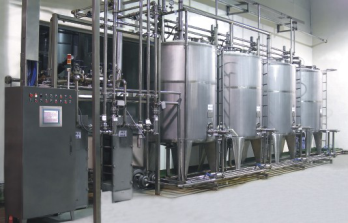

Full  name  of  CIP  system  is  cleaning  in place System,Chinese name is cleaning in place system.It is a system, in which,producing equipments (tanks,pipes and valves etc)and whole production line is cleaned and disinfected circularly in a closed loop without being dismantled or opened.It is applicable for cleaning of equipments and pipes in industries of dairy, beverages, alcohol, agricultural and sideline products.

CIP清洗系統由酸液罐、堿液罐、熱水罐、純水罐、回水罐、消毒水罐以及濃酸罐、濃堿罐和換熱器、進程泵及相應閥門管件組成 ?？砂垂に囆枨笈渲孟鄳?yīng)罐，在一般場合只需使用酸 液 罐 、堿液罐、熱水罐三罐制的CIP系統就可滿足清洗要求。

我公司生產的 CIP系統具有安全、節能、高效、操作維護方便等特點。主要有：① 手動CIP站；

 ② 半自動CIP站；

③ 自動CIP站系統；

④ 自動配料前處理系統自動CIP，更為先進、自動化程度，可靠性、 安全性更高， 可以實現整條生產線信息數據的采集、 交換并可以完成他們之間的聯動。

以上CIP的結構方式有聯體和分體兩種方式；這兩種結構的CIP的加熱方式各有四種加熱方式；板式加熱、列管加熱、盤管加熱、直通加熱，聯體的CIP系統有從一回路到三回路、罐容積從1T到5T的各種規格。分體式的CIP系統有從一回路到六回路、罐容積從1T到10T的各種規格

CIP cleaning  system I s  composed  of  acid  tanks, alkali  tanks, hot-water tanks,pure-water tanks,back-water tanks,disinfect-water tanks, thick-acid tanks, thick-alkali tanks, heat exchanger,pumps,peripheral valves and pipes.These tanks can be allocated according to technical requirements.Generally,the CIP system only comprising acid tanks,alkali tanks and hot-water tanks is sufficient for requirements of cleaning.

CIP system  produced  by  our company have the characteristics that,they are safe,energy-saving, highly efficient,and easy to operate and maintain.

Mainly are:

① Manual CIP station

② Semi-automatic CIP station

③ Auto CIP station system

④Before materials compounding, the processing  system  carries out automatic CIP,which is more advanced,automated,reliable and safe.Therefore,data sampling and exchanging on whole production line can be realized for linkages each couple of equipments.

The structures of CIP can be divided into joint type and split type . The CIP systems of the two types,for each type,there are four types of heating: plate heating, lined pipe heating,coil-pipe heating, and through heating. The joint type of CIP system has specifications from one-loop to three-loop and tank volume from 1T to 5T.The split type of CIP system has specifications from one-loop to six-loop and tank volume from 1T to 10T.
